NYLON SLINGS

WEAR PADS AND SLIDING SLEEVES

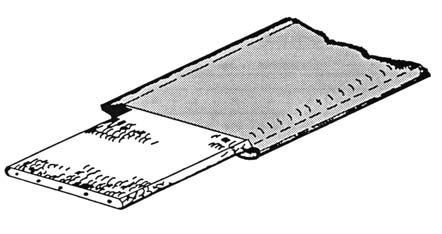

No. 1 SLIDING SLEEVE

This style allows you to slide the protective

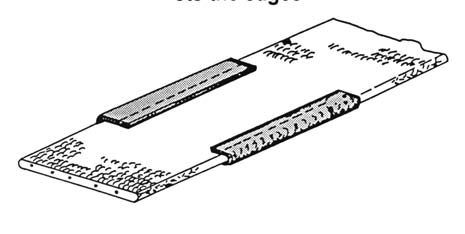

No. 2 EDGE GUARD

sleeve to the abrasive area that may do damage

This style protects the edges only.

to the sling.

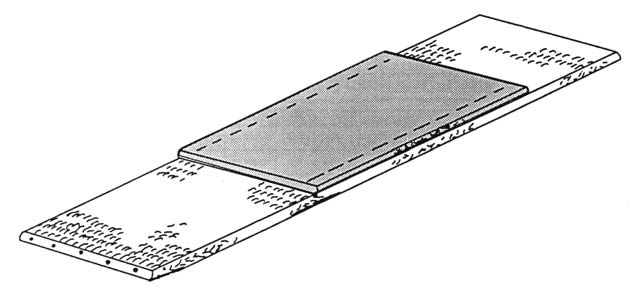

No. 3 FIXED WEAR PAD

This style gives fixed protection on one or both

sides of sling.

FORMED EYE WEAR PADS

Available in two styles for added wear protection in the eyes.  Available in Cordura.

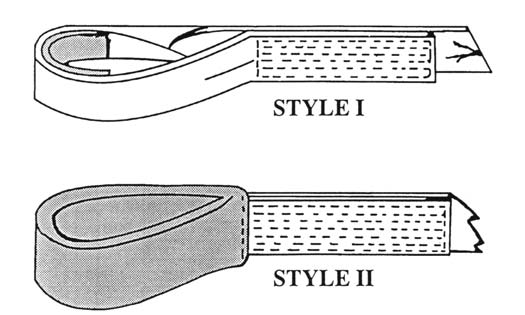

STYLE 1:

Sewn on wear pad.  A wear pad sewn directly inside

the eye at the bearing point.  (Included in the base

price of type 3 & 4 slings)

STYLE 2:

Full wrapped wear pad.  Provides total eye protection

for rough attachment points.

148
