NYLON SLINGS
BASKET HITCH
NEVER EXCEED WORKING LOAD LIMITS.

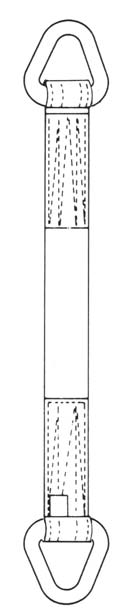

Hardware eyes allow longer sling life over an Eye & Eye type sling. Can be used in the basket and vertical pick only.
Existing hardware can be rewebbed. Factory wil advise if hardware is no longer suitable.
NOTE: Aluminum hardware (BHA) available in single ply thickness only.
ALUMINUM (BHA)
SLING
STOCK RATED CAPACITIES (lbs.) SLING WEIGHTS (lbs.)
WIDTH NUMBER
VERTICAL
BASKET
BASE 8 ADDER FT
2
BHA1 602
2400
4800
2.04
0.080
2
BHA1 902
3200
6400
2.26
0.112
3
BHA1 603
3600
7200
3.50
0.140
TYPE 2
3
BHA1 903
4800
9600
4.06
0.180
(BHA)
4
BHA1 604
4800
9600
4.78
0.172
4
BHA1 904
6400
12800
5.50
0.220
5
BHA1 905
8000
16000
7.23
0.268
6
BHA1 906
9600
19200
9.85
0.324
STEEL (BHS)
SLING
STOCK RATED CAPACITIES (lbs.) SLING WEIGHTS (lbs.)
WIDTH NUMBER VERTICAL
BASKET
BASE 8 ADDER FT
2
BHS1 602
2400
4800
3.40
0.080
2
BHS1 902
3200
6400
3.62
0.112
2
BHS2 602
4800
9600
3.76
0.160
2
BHS2 902
6400
12800
4.46
0.220
3
BHS1 603
3600
7200
5.30
0.140
3
BHS1 903
4800
9600
5.85
0.180
3
BHS2 603
6600
13200
6.29
0.280
3
BHS2 903
8800
17600
7.14
0.350
4
BHS1 604
4800
9600
7.38
0.170
4
BHS1 904
6400
12800
8.10
0.220
4
BHS2 604
8600
17200
8.46
0.340
4
BHS2 904
11200
22400
9.64
0.440
5
BHS1 905
8000
16000
10.43
0.268
5
BHS2 905
13700
27400
12.30
0.540
6
BHS1 906
9600
19200
12.75
0.324
6
BHS2 906
16500
33000
14.40
0.650
8
BHS1 908
12800
25600
31.11
0.448
8
BHS2 908
22000
44000
33.51
0.900
10
BHS1 910
16000
32000
39.71
0.568
10
BHS2 910
24000
48000
42.06
1.170
12
BHS1 912
19200
38400
45.64
0.720
12
BHS2 912
29000
58000
48.64
1.440
