REVERSE EYE & WIDE BODY	Next: CHOKER HITCH

NYLON SLINGS

REVERSE EYE & WIDE BODY

NEVER EXCEED WORKING LOAD LIMITS.

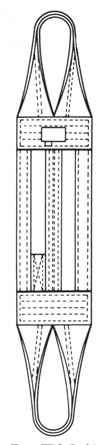

The workhorse of all slings.  This type has Cordura wear pad material on both sides of the body along with Cordura

wrapping of each eye.  The complete protection provides the ultimate in abrasion resistance and will further extend the

life of the sling.

TYPE 6

(RE)

SLING

SLING WEIGHTS

EYE

EYE

RATED CAPACITIES (lbs.)

STOCK

WIDTH

(lbs.)

WIDTH  LENGTH

NUMBER

(in.)

(in.)

(in.)

CHOKER VERTICAL BASKET BASE 8    ADDER FT

RE1 602

1.40

0.16

RE1 902

1.79

0.21

RE2 602

1.99

0.23

RE2 902

2.80

0.32

RE1 604

2.68

0.34

RE1 904

3.22

0.40

RE2 604

4.48

0.50

RE2 904

5.60

0.62

RE3 904

7.62

0.85

RE1 606

1.5

4.54

0.56

RE1 906

1.5

5.15

0.63

RE2 606

1.5

7.06

0.84

RE2 906

1.5

8.32

0.98

RE3 906

12.31

1.33

(WBH)

Wide body Hitch slings are designed to be used in the basket configuration only.  The width of

the sling provides for better product stability as the sling body makes contact with the load over

a greater surface area.  Wide Body Hitch slings protect delicate loads from damage and pro

vide rated capacities for heavy loads.  Slings wider than 24  are available upon request.

SLING

EYE

EYE

RATED

STOCK

SLING WEIGHTS (lbs.)

WIDTH

WIDTH

LENGTH

CAPACITIES

NUMBER

(in.)

(in.)

(in.)

(lbs.) BASKET

BASE 8    ADDER FT

WBH1 906

1.5

4.25

0.50

WBH2 906

1.5

4.50

0.88

WBH1 908

1.5

5.25

0.65

WBH2 908

5.50

1.00

WBH1 910

1.75

6.50

0.93

WBH2 910

2.5

7.00

1.62

WBH1 912

8.31

1.40

WBH2 912

8.83

1.75

WBH1 916

3.5

10.33

1.25

WBH2 916

11.20

1.95

WBH1 920

3.5

11.00

2.13

WBH2 920

13.33

2.59

WBH1 924

14.72

1.71

WBH2 924

15.73

3.08
