CHAIN
ALLOY GRADE 80 CHAIN SLINGS
KEY TO SELECTING PROPER
COMPONENTS
To locate proper size chain fittings required
chain size, use the following steps.

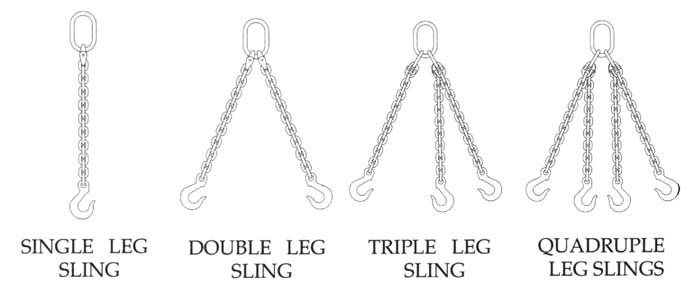

1. Locate proper table (below) for type of
sling being assembled (Single, Double,
Triple, or Quad leg.)
2. Determine size of chain required from
the Working Load Limit table on page 131.
3. Locate proper chain size in the Grade
80 column in the proper table below.
4. Follow row across until desired style of
fitting is found. The size shown indicates
the proper size chain fitting to be used.
SINGLE LEG SLING
G 80
G 80
SIZE
SIZE
MASTER
GRADE 80
G 80 EYE
CLEVIS
CLEVIS
GRADE MASTER
LINK SUB
COUPLING
FOUNDRY
SLING
GRAB
80 CHAIN
LINK
ASSEMBLY
LINK
HOOK
HOOK*
HOOK*
1/4
1/2
1/4
1/4
1/4
1/4
5/16
5/8
5/16
5/16
5/16
3/8
3/8
3/4
3/8
3/8
3/8
3/8
1/2
1
1/2
1/2
1/2
1/2
5/8
1
5/8
5/8
5/8
5/8
3/4
1 1/4
3/4
3/4
3/4
3/4
7/8
1 1/2
7/8
7/8
7/8
7/8
DOUBLE LEG SLING
G 80
G 80
SIZE
SIZE
MASTER
GRADE 80
G 80 EYE
CLEVIS
CLEVIS
GRADE MASTER LINK SUB COUPLING
FOUNDRY
SLING
GRAB
80 CHAIN
LINK
ASSEMBLY
LINK
HOOK
HOOK*
HOOK*
1/4
1/2
1/4
1/4
1/4
1/4
5/16
5/8
5/16
5/16
5/16
3/8
3/8
3/4
3/8
3/8
3/8
3/8
1/2
1
1/2
1/2
1/2
1/2
5/8
1 1/4
5/8
5/8
5/8
5/8
3/4
1 1/2
3/4
3/4
3/4
3/4
7/8
1 3/4
7/8
7/8
7/8
7/8
TRIPLE AND QUADRUPLE LEG SLING
G 80
G 80
SIZE
SIZE
MASTER
GRADE 80
G 80 EYE
CLEVIS
CLEVIS
GRADE MASTER LINK SUB COUPLING
FOUNDRY
SLING
GRAB
80 CHAIN
LINK
ASSEMBLY
LINK
HOOK
HOOK*
HOOK*
1/4
3/4
1/4
1/4
1/4
1/4
5/16
1
5/16
5/16
5/16
3/8
3/8
1
3/8
3/8
3/8
3/8
1/2
1 1/4
1/2
1/2
1/2
1/2
5/8
1 1/2
5/8
5/8
5/8
5/8
3/4
1 3/4
3/4
3/4
3/4
3/4
7/8
2
7/8
7/8
7/8
7/8
*Also includes eye type hook.
