CHAIN
ALLOY HOOKS GRADE 80
NEVER EXCEED WORKING LOAD LIMIT.
ALLOY CLEVIS GRAB HOOK
Forged alloy steel.
Heat treated and quenched and tempered.
Design factor 6:1.
CHAIN SIZE WORKING
DIMENSIONS (in.)
WEIGHT
(in.)
LOAD
EACH
LIMIT
E Tol.
In.
mm
B
D
E Dim.
G
H
K
L
M
P
T
(lbs.)
(lbs.)
+,
9/32
7
3500
1.250
1.781
0.359
0.016
3.000
0.328
0.984
0.357
1.625
0.718
1.187
0.46
3/8
10
7100
1.812
2.562
0.468
0.031
4.078
0.453
1.406
0.507
2.109
1.062
1.750
1.23
1/2
13
12000
2.156
3.250
0.595
0.031
5.266
0.593
1.875
0.625
2.875
1.281
2.125
2.40
5/8
16
18100
2.687
4.078
0.750
0.031
6.531
0.750
2.375
0.750
3.562
1.593
2.500
4.17
3/4
20
28300
3.125
5.234
0.875
0.031
9.083
0.875
3.503
0.906
5.500
1.867
2.875
9.56
7

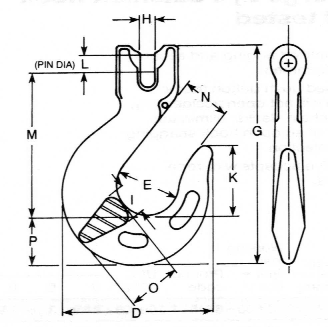

ALLOY CLEVIS SLING HOOK
Forged alloy steel.
Heat treated and quenched and tempered.
Design factor 6:1.
Available with latches.
CHAIN SIZE
WORKING
DIMENSIONS (in.)
WEIGHT
(in.)
LOAD
EACH
LIMIT
In.
mm
D E
G
H
I
K
L
M
N
O
P
(lbs.)
(lbs.)
9/32
7
3500
3.500
1.500
5.156
0.328
0.734
1.594
0.357
3.437
1.187
1.203
1.051
0.64
3/8
10
7100
4.343
1.875
6.672
0.453
0.953
2.187
0.507
4.468
1.437
1.453
1.281
1.91
1/2
13
12000
5.500
2.250
8.000
0.593
1.172
2.562
0.625
5.265
1.781
1.938
1.656
4.33
5/8
16
18100
6.281
2.625
9.687
0.750
1.438
2.281
0.750
6.078
2.031
2.375
2.188
5.20
3/4
20
28300
7.827
3.000
11.688
0.875
1.688
3.437
0.906
7.344
2.500
2.828
2.563
11.40

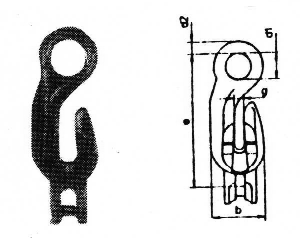

ALLOY CLEVIS SHORTENING HOOK
For mounting into assemblies requiring a shortening capability.
Can be used with any master link assembly. Compact and convenient fitting.
WORKING
DIMENSIONS (in.)
WEIGHT
LOAD
SIZE (in.)
EACH
LIMIT
e
b
a
d1
d2
g
(lbs.)
(lbs.)
9/32
3500
4.84
2.08
1.53
0.94
0.43
0.35
1.5
5/16
4500
4.8
2.08
1.53
0.94
0.43
0.35
1.5
3/8
7100
6.26
2.73
1.96
1.22
0.55
0.51
2.7
1/2
12000
8.03
3.62
2.51
1.53
0.66
0.59
6.0
5/8
18100
8.7
4.01
3.15
1.57
0.78
0.66
8.8
