RIGGING HARDWARE
FORGED EYE BOLTS
CAUTION: NEVER EXCEED THE WORKING LOAD LIMIT.
NEVER INSERT THE POINT OF A HOOK IN AN EYEBOLT. ALWAYS USE A SHACKLE.
Read important warnings and information preceding fittings section.
4

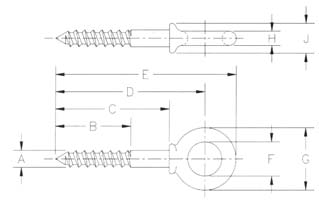

SCREW EYE BOLTS
Forged steel.
Hot dipped galvanized.
SHANK
DIMENSIONS (in.)
WEIGHT
DIA. &
PER 100
LENGTH
A
B
C
D
E
F
G
H
J
(lbs.)
(in.)
1/4 x 2
4.30
0.25
1.50
2.00
2.50
2.94
0.50
0.88
0.19
0.47
5/16 x 2 1/4
9.90
0.31
1.69
2.25
2.94
3.50
0.63
1.13
0.25
0.56
3/8 x 2 1/2
18.88
0.38
1.88
2.50
3.28
3.97
0.75
1.38
0.31
0.66
1/2 x 3 1/4
37.50
0.50
2.44
3.25
4.25
5.12
1.00
1.75
0.38
0.91
5/8 x 4
85.50
0.63
3.00
4.00
5.31
6.44
1.25
2.25
0.50
1.12

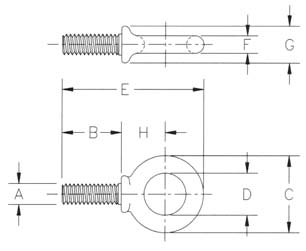

SHOULDER TYPE MACHINERY EYE BOLTS
Forged steel.
Working Load Limits shown are for in
line pull.
Recommended for straight line pull.
All bolts threaded UNC.
WORKING
DIMENSIONS (in.)
SHANK DIA.
WEIGHT
LOAD
& LENGTH
Per 100
LIMIT
A
B
C
D
E
F
G
H
(in.)
(lbs.)
*(lbs.)
1/4 x 1
650
5.10
0.25
1.00
0.88
0.50
1.94
0.19
0.47
0.50
5/16 x 1 1/8
1200
6.20
0.31
1.13
1.12
0.62
2.38
0.25
0.56
0.69
3/8 x 1 14
1,550
12.50
0.38
1.25
1.38
0.75
2.72
0.31
0.66
0.78
1/2 x 1 1/2
2,600
25.00
0.50
1.50
1.75
1.00
3.38
0.38
0.91
1.00
5/8 x 1 3/4
5,200
50.00
0.63
1.75
2.25
1.25
4.19
0.50
1.12
1.31
3/4 x 2
7200
87.50
0.75
2.00
2.75
1.50
4.94
0.62
1.38
1.56
7/8 x 2 1/4
10600
157.20
0.88
2.25
3.25
1.75
5.72
0.75
1.56
1.84
1 x 2 1/2
13300
218.00
1.00
2.50
3.75
2.00
6.47
0.88
1.81
2.09
1 1/4 x 3
21000
380.00
1.25
3.00
4.50
2.50
7.72
1.00
2.28
2.47
1 1/2 x 3 1/2
24000
700.00
1.50
3.50
5.50
3.00
9.25
1.25
2.75
3.00
*Ultimate Load is 5 times the Working Load Limit.
