RIGGING HARDWARE
FORGED EYE BOLTS
CAUTION: NEVER EXCEED THE WORKING LOAD LIMIT.
NEVER INSERT THE POINT OF A HOOK IN AN EYEBOLT. ALWAYS USE A SHACKLE.

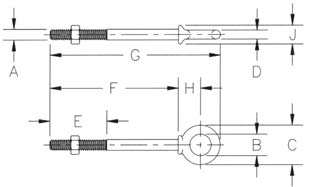

SHOULDER NUT EYE BOLTS
SHANK
WORKING
DIMENSIONS (in.)
Forged steel.
WEIGHT
DIA. &
LOAD
Hot dipped galvanizing after
Per 100
LENGTH
LIMIT
A
B
C
D
E
F
G
H
J
(lbs.)
threading.
(in.)
*(lbs.)
1/4 X 2
650
6.60
0.25
0.50
0.88
0.19
1.50
2.00
2.94
0.50
0.47
Furnished with standard hot
1/4 X 4
650
9.10
0.25
0.50
0.88
0.19
2.50
4.00
4.94
0.50
0.47
dipped galvanized, heavy hex
5/16 X 2 1/4
1,200
12.50
0.31
0.62
1.12
0.25
1.50
2.25
3.50
0.69
0.56
nuts.
5/16 X4 1/4
1,200
18.80
0.31
0.62
1.12
0.25
2.50
4.25
5.50
0.69
0.56
3/8 X 2 1/2
1,550
21.40
0.38
0.75
1.38
0.31
1.50
2.50
3.97
0.78
0.66
3/8 X 4 1/2
1550
25.30
0.38
0.75
1.38
0.31
2.50
4.50
5.97
0.78
0.66
1/2 X 3 1/4
2600
42.60
0.50
1.00
1.75
0.38
1.50
3.25
5.12
1.00
0.91
1/2 X 6
2600
56.80
0.50
1.00
1.75
0.38
3.00
6.00
7.88
1.00
0.91
5/8 X 4
5200
68.60
0.62
1.25
2.25
0.50
2.00
4.00
6.44
1.31
1.12
5/8 X 6
5200
102.40
0.62
1.25
2.25
0.50
3.00
6.00
8.44
1.31
1.12
3/4 X 4 1/2
7200
144.50
0.75
1.50
2.75
0.62
2.00
4.50
7.44
1.56
1.38
3/4 X 6
7200
167.50
0.75
1.50
2.75
0.62
3.00
6.00
8.94
1.56
1.38
7/8 X 5
10600
225.00
0.88
1.75
3.25
0.75
2.50
5.00
8.46
1.84
1.56
1 X 6
13300
366.30
1.00
2.00
3.75
0.88
3.00
6.00
9.97
2.09
1.81
1 X 9
13300
422.50
1.00
2.00
3.75
0.88
4.00
9.00
12.97
2.09
1.81
*Ultimate Load is 5 times the Working Load Limit. Working Load Limit shown is for in line pull.
SHANK
WORKING
DIMENSIONS (in.)

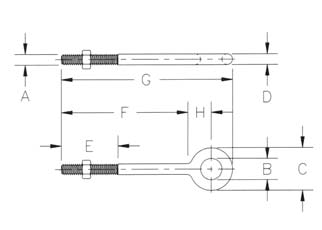

REGULAR NUT EYE BOLTS
WEIGHT
DIA. &
LOAD
Per 100
Forged steel.
LENGTH
LIMIT
A
B
C
D
E
F
G
H
(lbs.)
(in.)
*(lbs.)
Hot dipped galvanizing after
1/4 X 2
650
8.20
0.25
0.50
1.00
0.25
1.50
2.00
3.06
0.56
threading.
1/4 X 4
650
11.70
0.25
0.50
1.00
0.25
2.50
4.00
5.06
0.56
Furnished with standard hot dipped
5/16 X 2 1/4
1,200
13.30
0.31
0.62
1.25
0.31
1.50
2.25
3.56
0.69
galvanized, heavy hex nuts.
5/16 X4 1/4
1,200
25.00
0.31
0.62
1.25
0.31
2.50
4.25
5.56
0.69
3/8 X 2 1/2
1,550
23.30
0.38
0.75
1.50
0.38
1.50
2.50
4.12
0.88
Recommended for straight line pull.
3/8 X 4 1/2
1550
29.50
0.38
0.75
1.50
0.38
2.50
4.50
6.12
0.88
3/8 X 6
1550
35.20
0.38
0.75
1.50
0.38
2.50
6.00
7.62
0.88
1/2 X 3 1/4
2600
50.30
0.50
1.00
2.00
0.50
1.50
3.25
5.38
1.12
1/2 X 6
2600
66.10
0.50
1.00
2.00
0.50
3.00
6.00
8.12
1.12
1/2 X 8
2600
82.00
0.50
1.00
2.00
0.50
3.00
8.00
10.12
1.12
1/2 X 10
2600
88.00
0.50
1.00
2.00
0.50
3.00
10.00
12.12
1.12
1/2 X 12
2600
114.20
0.50
1.00
2.00
0.50
3.00
12.00
14.12
1.12
5/8 X 4
5200
103.10
0.62
1.25
2.50
0.62
2.00
4.00
6.69
1.44
5/8 X 6
5200
118.20
0.62
1.25
2.50
0.62
3.00
6.00
8.69
1.44
5/8 X 8
5200
135.10
0.62
1.25
2.50
0.62
3.00
8.00
10.69
1.44
5/8 X 10
5200
153.60
0.62
1.25
2.50
0.62
3.00
10.00
12.69
1.44
5/8 X 12
5200
167.10
0.62
1.25
2.50
0.62
4.00
12.00
14.69
1.44
3/4 X 4 1/2
7200
168.60
0.75
1.50
3.00
0.75
2.00
4.50
7.69
1.69
3/4 X 6
7200
184.50
0.75
1.50
3.00
0.75
3.00
6.00
9.19
1.69
3/4 X 8
7200
207.90
0.75
1.50
3.00
0.75
3.00
8.00
11.19
1.69
3/4 X 10
7200
235.00
0.75
1.50
3.00
0.75
3.00
10.00
13.19
1.69
3/4 X 12
7200
257.50
0.75
1.50
3.00
0.75
4.00
12.00
15.19
1.69
7/8 X 5
10600
270.00
0.88
1.75
3.50
0.88
2.50
5.00
8.75
2.00
1 X 6
13300
421.00
1.00
2.00
4.00
1.00
3.00
6.00
10.31
2.31
1 X 9
13300
468.50
1.00
2.00
4.00
1.00
4.00
9.00
13.31
2.31
*Ultimate Load is 5 times the Working Load Limit. Working Load Limit shown is for in line pull.
