RIGGING HARDWARE
SNATCH BLOCKS & CABLE GRIPS
CAUTION: NEVER EXCEED THE WORKING LOAD LIMIT
4

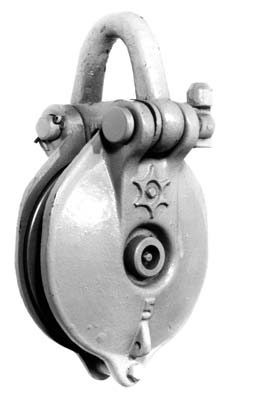

RED IMPORT SNATCH BLOCK
Snatch block with bail.
All steel ball bearing.
Heavy Duty cast shell.
Pressure Grease fitting.
Shell construction prevents lodging of
rope between sheave and shell.
Wire rope will not lose position in block
even when slack.
Ultimate Load 4 times Working Load
Limit.
WIRE
WORKING
WEIGHT
SHEAVE ROPE DIA. LOAD LIMIT EACH
SIZE (in.)
(in.)
(tons)
(lbs.)
3
1/4 3/8
1.5
2.75
4
1/4 7/16
3
4.25
5
3/8 1/2
4.5
7.25
6
1/2 3/4
6
12.25
8
3/4 1.
8
27.50

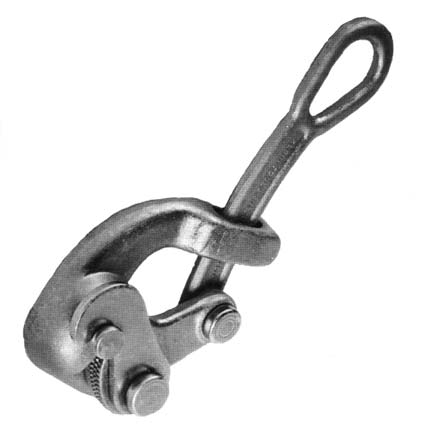

KLEIN HAVEN CABLE GRIPS
DO NOT USE FOR OVERHEAD LIFTING!
Designed for use when light, compact grip
is desired and where conductor damage is
not a factor.
WORKING
WIRE
WEIGHT
Part No. LOAD LIMIT ROPE
EACH
(lbs.)
SIZE (in.)
(lbs.)
1604 10
5,000
1/16 1/4
1
1604 20L
8,000
1/8 1/2
2.5
1625 20
8,000
9/32 3/4
3.5
1625 20 1
8,000
1/2 1.
3.5
