RIGGING HARDWARE
CARBON STEEL SLEEVES
4

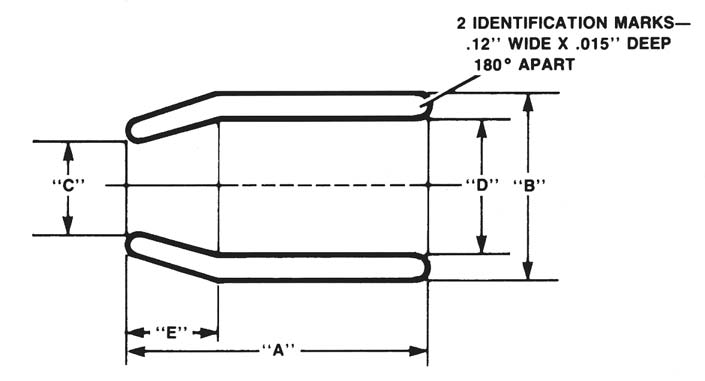

DIMENSIONS (in.)
WEIGHT
ROPE
WALL
AFTER
EACH
SIZE (in.)
A
B
C
D
E
THICK
SWAGE
(lbs.)
NESS
DIA.
1/4
1.000
0.656
0.328
0.469
0.281
0.094
0.50
0.04
5/16
1.500
0.906
0.437
0.609
0.437
0.141
0.73
0.14
3/8
1.500
0.906
0.469
0.656
0.437
0.125
0.73
0.12
7/16
2.000
1.219
0.563
0.844
0.593
0.187
0.98
0.32
1/2
2.000
1.220
0.625
0.906
0.593
0.156
0.98
0.28
9/16
2.750
1.469
0.688
1.031
0.703
0.219
1.20
0.63
5/8
2.750
1.469
0.750
1.094
0.703
0.187
1.20
0.56
3/4
3.187
1.719
0.922
1.281
0.859
0.219
1.41
0.88
7/8
3.562
2.031
1.031
1.531
1.000
0.250
1.63
1.38
1
4.000
2.281
1.156
1.719
1.125
0.281
1.88
1.90
1 1/8
4.813
2.500
1.281
1.938
1.250
0.281
2.08
2.60
1 1/4
5.203
2.781
1.438
2.156
1.406
0.312
2.27
3.40
1 3/8
5.810
3.000
1.563
2.375
1.562
0.312
2.46
4.30
1 1/2
6.250
3.250
1.688
2.625
1.688
0.312
2.65
5.00
1 3/4
7.250
3.844
1.938
3.125
1.969
0.359
3.04
8.40
2
8.500
4.375
2.250
3.625
2.250
0.375
3.50
11.30
2 1/4
9.562
5.031
2.500
4.031
2.531
0.500
4.06
19.20
2 1/2
10.500
5.500
2.750
4.500
2.813
0.500
4.44
23.20
