RIGGING HARDWARE
FORGED SWAGED SOCKETS
UPSON WALTON
OPEN SWAGE TYPE
Forged from special C 1035 steel, fine grain, special bar quality. Spheroidized annealed for cold swaging. Swage sock
ets are recommended for use on 6x19 or 6x37 IWRC regular lay ropes. They are also safisfactory on galvanized bridge
rope. They are not recommended for use on fiber core or lang lay ropes.
Sockets properly applied have an efficiency rating of 100% of the catalog breaking of the wire rope.
ROPE

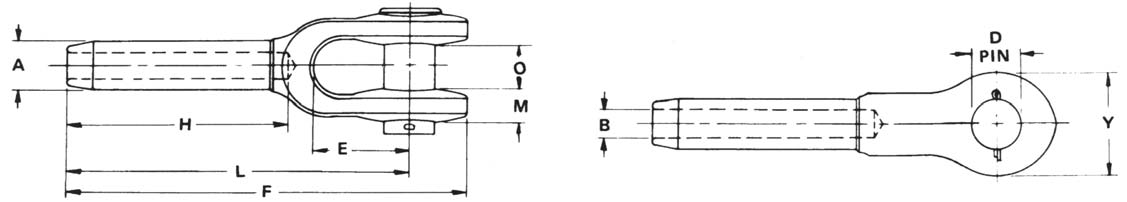

DIMENSIONS (in.)
WEIGHT
AFTER
SIZE
EACH
SWAGE
(in.)
(lbs.)
A
B
D
E
F
H
L
M
O
Y
1/4
0.495
0.272
0.688
1.500
4.750
2.125
4.000
0.312
0.688
1.375
4.380
0.57
5/16
0.770
0.339
0.812
1.750
6.250
3.187
5.312
0.406
0.813
1.625
0.688
1.24
3/8
0.770
0.406
0.812
1.750
6.250
3.187
5.312
0.406
0.813
1.625
0.688
1.20
7/16
0.982
0.484
1.000
2.000
7.812
4.250
6.688
0.500
1.000
2.000
0.875
2.45
1/2
0.982
0.547
1.000
2.000
7.812
4.250
6.688
0.500
1.000
2.000
0.875
2.40
9/16
1.257
0.609
1.190
2.250
9.562
5.312
8.125
0.625
1.250
2.500
1.125
4.80
5/8
1.257
0.672
1.190
2.250
9.562
5.312
8.125
0.625
1.250
2.500
1.125
4.50
3/4
1.545
0.796
1.380
2.750
11.687
6.375
10.000
0.750
1.500
3.000
1.375
7.80
7/8
1.700
0.938
1.630
3.250
13.625
7.437
11.625
0.938
1.750
3.375
1.500
11.80
1
1.975
1.062
2.000
3.750
15.625
8.500
13.375
1.031
2.000
4.000
1.750
17.80
1 1/8
2.245
1.188
2.250
4.250
17.500
9.562
15.000
1.187
2.250
4.500
2.000
28.90
1 1/4
2.525
1.328
2.500
4.750
19.437 10.625 16.500
1.187
2.500
5.000
2.250
36.20
1 3/8
2.800
1.453
2.500
5.250
21.250 11.688 18.125
1.312
2.500
5.250
2.500
47.70
1 1/2
3.075
1.578
2.750
5.750
23.250 12.750 19.750
1.437
3.000
5.750
2.750
64.40
1 3/4
3.385
1.859
3.500
6.750
27.125 14.875 23.000
1.688
3.500
7.000
3.000
93.40
2
3.935
2.109
3.750
8.000
31.437 17.000 26.750
1.813
4.000
8.000
3.500
148.00
2 1/4
4.450
2.360
4.250
6.750
32.875 19.125 27.750
2.562
4.500
8.750
3.960
173.00
2 1/2
4.930
2.657
4.250
6.750
34.625 19.625 29.500
2.562
4.500
8.750
4.360
233.00
3
5.930
3.166
5.250
8.625
41.125 23.750 35.625
3.000
5.750
9.500
5.250
382.00
