WIRE ROPE SPELTER SOCKETS	Next: WIRE ROPE SWAGE SOCKETS

RIGGING HARDWARE

WIRE ROPE SPELTER SOCKETS

GALVANIZED OPEN & CLOSED

FORGED STEEL THROUGH 1 1/4

CAST ALLOY STEEL FROM 1 1/2  THROUGH 4

AVAILABLE IN DOMESTIC

Spelter socket terminations have an efficiency rating of 100%, based on the catalog strength of wire rope.  Ratings are

based on the recommended use with 6x7, 6x19 or 6x37, IPS or XIP(EIP), XXIP(EEIP), RRL, FC or IWRC wire rope.

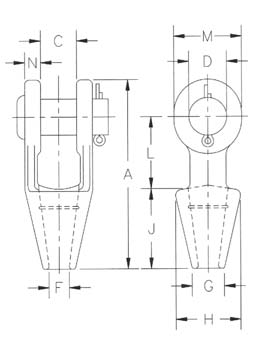

Open wire rope sockets

meet the requirements of

Federal Specification RR

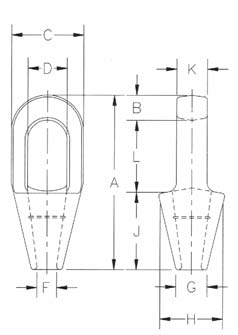

Closed spelters sockets

meet the requirements of

Federal Specification
