RIGGING HARDWARE
FORGED SWIVELS
GALVANIZED
ULTIMATE LOAD 5 TIMES WORKING LOAD LIMIT
HOT DIPPED GALVANIZED
4
Meets the performance requirements of Federal

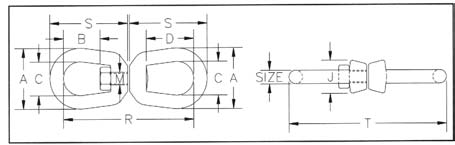

EYE & EYE
Specifications RR C 271D, TYPE VII, Class 2.
WORKING
DIMENSIONS (in.)
WEIGHT
SIZE
LOAD
EACH
(in.)
LIMIT
(lbs.)
(lbs.)
A
B
C
D
J
M
R
S
T
1/4
850
1.25
0.69
0.75
1.06
0.69
0.31
2.94
1.69
3.44
0.21
5/16
1250
1.63
0.81
1.00
1.25
0.81
0.38
3.56
2.06
4.19
0.39
3/8
2250
2.00
0.94
1.25
1.50
1.00
0.50
4.31
2.50
5.06
0.71
1/2
3600
2.50
1.31
1.50
2.00
1.31
0.63
5.44
3.19
6.44
1.32
5/8
5200
3.00
1.56
1.75
2.38
1.50
0.75
6.56
3.88
7.81
2.49
3/4
7200
3.50
1.75
2.00
2.63
1.88
0.88
7.19
4.31
8.69
4.02
7/8
10000
4.00
2.06
2.25
3.06
2.13
1.00
8.38
5.00
10.13
6.25
1
12500
4.50
2.31
2.50
3.50
2.38
1.13
9.63
5.75
11.63
8.95
1 1/4
18000
5.63
2.69
3.13
3.69
3.00
1.38
11.13
6.75
13.36
16.37
1 1/2
45200
7.00
4.19
4.00
4.19
4.00
2.25
17.13
10.00
20.13
45.79
Ultimate Load is 5 times with Working Load Limit.
Meets the performance requirements of Federal
JAW & EYE
Specifications RR C 271D, TYPE VII, Class 3.
WORKING
SIZE
LOAD
DIMENSIONS (in.)
(in.)
LIMIT
(lbs.)
A
B
C
G
J
K
L
M
N
P
R
T
U
V
1/4
850
1.25
0.69
0.75
0.69
0.69
0.47
1.03
0.31
0.88
0.25
2.63
3.38
1.69
1.69
5/16
1250
1.63
0.81
1.00
0.81
0.81
0.50
1.13
0.38
0.88
0.31
2.94
3.88
2.06
1.81
3/8
2250
2.00
0.94
1.25
1.00
1.00
0.63
1.41
0.50
1.06
0.38
3.63
4.75
2.50
2.25
1/2
3600
2.50
1.31
1.50
1.31
1.31
0.75
1.75
0.63
1.31
0.50
4.50
6.06
3.19
2.88
5/8
5200
3.00
1.56
1.75
1.63
1.50
0.94
2.06
0.75
1.50
0.63
5.31
7.31
3.88
3.44
3/4
7200
3.50
1.75
2.00
1.88
1.88
1.13
2.53
0.88
1.75
0.75
6.06
8.31
4.31
4.00
7/8
10000
4.00
2.06
2.25
2.13
2.13
1.19
2.75
1.00
2.06
0.88
7.00
9.53
5.00
4.53
1
12500
4.50
2.31
2.50
2.63
2.38
1.75
3.72
1.13
2.81
1.13
8.56
11.69
5.75
5.94
1 1/4
18000
5.69
2.69
3.13
3.13
3.00
2.06
4.31
1.50
2.81
1.38
9.44
13.13
6.75
6.38
1 1/2
45200
7.00
4.19
4.00
5.63
4.00
2.88
6.00
2.25
4.44
2.25
14.74
20.84
10.00
10.84
Ultimate Load is 5 times with Working Load Limit.
93
