RIGGING HARDWARE
WIRE ROPE THIMBLES
HEAVY DUTY GALVANIZED
As per U.S. Federal Specifications No. FF T 276b, TYPE III.
Also available with welded gusset.
Available in stainless steel See page 103.
WIRE

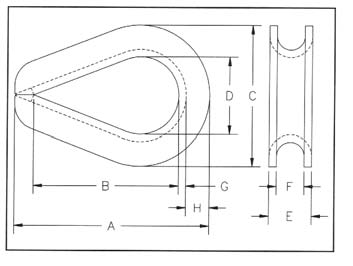

DIMENSIONS (in.)
WEIGHT
MAX. PIN
ROPE DIA.
PER 100
DIA (in.)
SIZE (in.)
(lbs.)
A
B
C
D
E
F
G
H
1/4
2.19
1.63
1.50
0.88
0.41
0.28
0.06
0.23
0.81
6.50
5/16
2.50
1.88
1.81
1.06
0.50
0.34
0.08
0.28
0.94
11.80
3/8
2.88
2.13
2.13
1.13
0.63
0.41
0.11
0.34
1.06
21.60
7/16
3.25
2.38
2.38
1.25
0.72
0.47
0.13
0.38
1.19
34.70
1/2
3.63
2.75
2.75
1.50
0.81
0.53
0.14
0.41
1.44
51.00
9/16
3.63
2.75
2.69
1.50
0.88
0.59
0.14
0.41
1.44
51.00
5/8
4.25
3.25
3.13
1.75
0.97
0.66
0.16
0.50
1.63
75.70
3/4
5.00
3.75
3.81
2.00
1.22
0.78
0.22
0.66
1.88
158.10
7/8
5.50
4.25
4.25
2.25
1.38
0.94
0.22
0.75
2.13
177.80
1
6.13
4.50
4.94
2.50
1.56
1.06
0.25
0.88
2.38
313.90
1 1/8 1 1/4
7.00
5.13
5.88
2.88
1.81
1.31
0.25
1.13
2.75
400.00
1 1/4 1 3/8
9.06
6.50
6.81
3.50
2.19
1.44
0.38
1.13
3.25
811.00
1 3/8 1 1/2
9.00
6.25
7.13
3.50
2.56
1.56
0.50
1.13
3.38
1294.80
1 5/8
11.25
8.00
8.13
4.00
2.72
1.72
0.50
1.38
3.88
1700.00
1 3/4
12.19
9.00
8.50
4.50
2.84
1.84
0.50
1.31
4.38
1775.00
1 7/8 2
15.13
12.00
10.38
6.00
3.09
2.09
0.50
1.50
5.88
2775.00
2 1/4
17.13
14.00
11.88
7.00
3.63
2.38
0.63
1.63
6.88
3950.00
2 1/2
17.50
15.75
13.50
8.50
4.25
2.63
0.75
1.75
8.25
5000.00
