RIGGING HARDWARE
WIRE ROPE CLIPS
FORGED & MALLEABLE

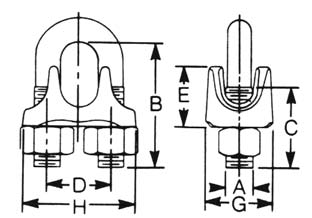

Clips meet Federal Specification FF C 450 TYPE 1 Class 1
Forged Carbon steel clip base
Heavy Hex Type nuts
CLIP
Min. No
DIMENSIONS (in.)
WEIGHT
AND
of CLIPS
PER 100
4
ROPE Required
(lbs.)
SIZE (in.)
A
B
C
D
E
G
H
1/8
2
0.22
0.72
0.44
0.47
0.41
0.81
0.94
6
3/16
2
0.25
0.97
0.56
0.59
0.50
0.94
1.16
10
1/4
2
0.31
1.03
0.50
0.75
0.66
1.19
1.44
18
5/16
2
0.38
1.38
0.75
0.88
0.72
1.31
1.69
30
3/8
2
0.44
1.50
0.75
1.00
0.91
1.63
1.94
47
7/16
2
0.50
1.88
1.00
1.19
1.03
1.81
2.28
76
1/2
3
0.50
1.88
1.00
1.19
1.13
1.91
2.28
80
9/16
3
0.56
2.25
1.25
1.31
1.22
2.06
2.50
104
5/8
3
0.56
2.38
1.25
1.31
1.34
2.06
2.50
106
3/4
4
0.62
2.75
1.44
1.50
1.41
2.25
2.84
150
7/8
4
0.75
3.12
1.62
1.75
1.59
2.44
3.16
212
1
5
0.75
3.50
1.81
1.88
1.78
2.63
3.47
260
1 1/8
6
0.75
3.88
2.00
2.00
1.91
2.81
3.59
290
1 1/4
7
0.88
4.25
2.13
2.31
2.19
3.13
4.13
430
1 3/8
7
0.88
4.63
2.31
2.38
2.31
3.13
4.19
460
1 1/2
8
0.88
4.94
2.38
2.59
2.44
3.41
4.44
540
1 5/8
8
1.00
5.31
2.62
2.75
2.66
3.63
4.75
700
1 3/4
8
1.13
5.75
2.75
3.06
2.94
3.81
5.28
925
2
8
1.25
6.44
3.00
3.38
3.28
4.44
5.88
1300
2 1/4
8
1.25
7.13
3.19
3.88
3.19
4.50
6.38
1600
2 1/2
9
1.25
7.69
3.44
4.13
3.69
4.05
6.63
1900
2 3/4
10
1.25
8.31
3.56
4.38
4.88
5.00
6.88
2300
3
10
1.50
9.19
3.88
4.75
4.69
5.88
7.63
3300
3 1/2
12
1.50
10.75
4.50
5.50
6.00
6.19
8.38
4000

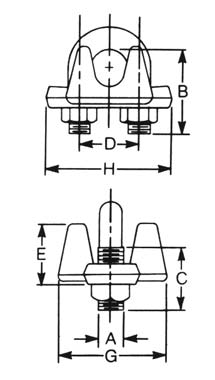

Clips meet Federal Specification
FF C 450 TYPE 1 Class 2
Malleable Iron Zinc plated
All nuts regular hex type
CLIP
Min. No
AND
DIMENSIONS (in.)
WEIGHT
of CLIPS
PER 100
ROPE Required
(lbs.)
SIZE (in.)
A
B
C
D
E
G
H
1/8
2
0.25
0.81
0.50
0.50
0.44
0.50
0.94
6
3/16
2
0.25
0.97
0.63
0.59
0.50
0.59
1.06
10
1/4
2
0.31
1.22
0.88
0.69
0.63
0.69
1.38
18
5/16
2
0.31
1.22
0.88
0.69
0.69
0.69
1.38
30
3/8
2
0.38
1.63
1.00
0.88
0.82
0.88
1.63
47
7/16
3
0.38
1.63
1.00
0.88
0.82
0.92
1.63
76
1/2
3
0.44
2.00
1.25
1.00
1.06
1.00
1.88
80
9/16
3
0.50
2.31
1.47
1.19
1.13
1.13
2.13
104
5/8
3
0.50
2.31
1.47
1.19
1.31
1.13
2.13
106
3/4
4
0.56
2.56
1.75
1.35
1.50
1.25
2.44
150
7/8
4
0.63
3.06
1.81
1.63
1.75
1.75
2.88
212
1
4
0.63
3.38
2.06
1.75
1.92
2.00
3.00
260
NOTE: Malleable clips are not designed
1 1/8
5
0.75
3.88
2.19
2.06
2.13
2.25
3.44
290
for overhead lifting.
1 1/4
5
0.75
3.88
2.19
2.06
2.38
2.50
3.44
430
1 3/8
6
0.88
4.50
2.00
2.59
2.88
3.13
4.13
460
1 1/2
6
0.88
4.50
2.00
2.59
3.00
3.25
4.25
540
Stainless steel wire rope clips on
pages 103.
