RIGGING HARDWARE
TURNBUCKLES
FORGED

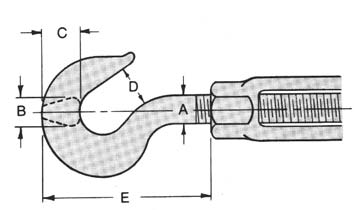

DIMENSIONS (in.)
WORKING
LOAD LIMIT
A
B
C
D
E
(lbs.)
1/4
0.25
0.41
0.45
1.66
400
5/16
0.31
0.50
0.50
1.97
700
3/8
0.38
0.61
0.56
2.36
1000
1/2
0.50
0.78
0.66
2.94
1500
5/8
0.63
1.00
0.84
3.69
2250
3/4
0.75
1.20
0.98
4.52
3000
7/8
0.88
1.38
1.13
5.19
4000
1
1.00
1.53
1.25
5.84
5000
1 1/4
1.25
1.81
1.50
7.22
5000
1 1/2
1.31
1.75
1.88
8.34
7500
DIMENSIONS (in.)
WORKING
LOAD LIMIT
A
B
C
D
E
(lbs.)
1/4
0.34
0.22
0.78
1.78
500
5/16
0.44
0.28
0.94
2.18
800
3/8
0.53
0.34
1.13
2.56
1200
1/2
0.72
0.44
1.44
3.22
2200
5/8
0.88
0.50
1.75
3.88
3500
3/4
1.00
0.63
2.13
4.69
5200
7/8
1.25
0.75
2.38
4.25
7200
1
1.44
0.88
3.00
6.38
10000
1 1/4
1.81
1.13
3.56
7.75
15200
1 1/2
2.13
1.25
4.13
8.63
21400
1 3/4
2.38
1.50
4.68
10.00
28000
2
2.69
1.75
5.75
12.13
37000
2 1/2
3.13
2.00
6.50
13.56
60000
2 3/4
3.25
2.25
7.00
15.00
75000

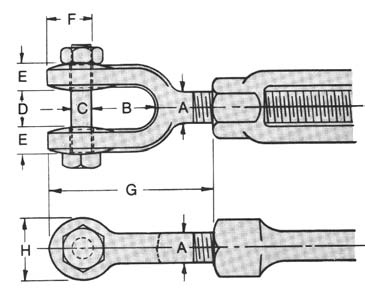

DIMENSIONS (in.)
WORKING
LOAD LIMIT
A
B
C
D
E
F
G
H
(lbs.)
1/4
0.63
0.25
0.41
0.28
0.50
1.63
0.63
500
5/16
0.88
0.25
0.47
0.28
0.50
2.00
0.69
800
3/8
0.88
0.31
0.50
0.31
0.59
2.19
0.81
1200
1/2
1.06
0.38
0.63
0.41
0.75
2.75
1.00
2200
5/8
1.31
0.50
0.75
0.50
1.03
3.50
1.31
3500
3/4
1.50
0.63
0.94
0.56
1.28
4.13
1.63
5200
7/8
1.75
0.75
1.13
0.69
1.47
4.84
1.88
7200
1
2.06
0.88
1.19
0.78
1.66
5.53
2.13
10000
1 1/4
2.81
1.13
1.75
1.00
2.09
7.19
2.63
15200
1 1/2
2.81
1.38
2.06
1.06
2.47
7.88
3.13
21400
1 3/4
3.38
1.63
2.38
1.25
2.91
9.38
3.50
28000
2
3.75
2.00
2.50
1.56
3.53
10.88
4.19
37000
2 1/2
4.19
2.25
2.88
1.56
4.63
13.34
5.63
60000
2 3/4
4.40
2.75
3.50
1.63
5.38
15.00
6.13
75000

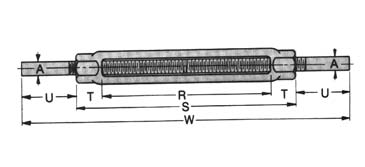

DIMENSIONS (in.)
WORKING
LOAD LIMIT
A
R
S
T
U
W
(lbs.)
1/4
4.00
4.75
0.38
2.63
10.00
500
5/16
4.50
5.44
0.47
2.66
10.75
800
3/8
6.00
7.13
0.56
4.44
16.00
1200
1/2
6.00
7.50
0.75
4.25
16.00
2200
5/8
6.00
7.88
0.94
4.06
16.00
3500
3/4
6.00
8.25
1.13
4.38
17.00
5200
7/8
6.00
8.63
1.31
4.69
18.00
7200
1
6.00
9.00
1.50
5.00
19.00
10000
1 1/4
6.00
9.13
1.56
5.44
20.00
15200
1 1/2
6.00
9.75
1.88
5.38
20.50
21400
1 3/4
6.00
10.38
2.19
5.81
22.00
28000
2
6.00
11.00
2.50
6.00
23.00
37000
2 1/2
6.00
13.50
3.75
6.25
26.00
60000
2 3/4
24.00
31.50
3.75
6.50
44.50
75000
