RIGGING HARDWARE
TURNBUCKLES
FORGED
4
Drop Forged Hex Body Hot Dipped Galvanzized
Ultimate Load 5 times the Working Load Limit Use for straight or in line pulls only

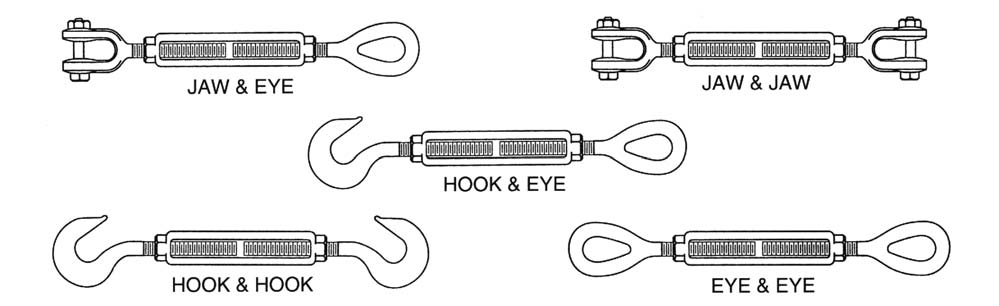

Jaw & Jaw meets Federal Specifications
Avg.
WEIGHT EACH (lbs.)
FF T 791 b Type 1, Form 1, Class 7
DIAMETER OVERALL
with
& TAKE
length in
JAW and JAW and
HOOKS
Jaw & Eye meets Federal Specifications
UP (in.)
closed
EYES
JAW
or EYES
FF T 791 b Type 1, Form 1, Class 8
position (in.)
1/4 x 4
8 1/4
0.30
0.32
0.36
5/16 x 4 1/2
9 9/16
0.63
0.47
0.52
Eye & Eye meets Federal Specifications
3/8 x 6
11 7/8
0.75
0.76
0.81
FF T 791 b Type 1, Form 1, Class 4
1/2 x 6
13 5/16
1.60
1.53
1.50
1/2 x 9
16 5/16
1.83
1.71
1.74
Hook & Hook meets Federal Specifications
1/2 x 12
19 5/16
2.25
2.06
2.40
FF T 791 b Type 1, Form 1, Class 5
5/8 x 6
15 1/2
2.75
2.35
3.02
5/8 x 9
18 1/2
3.13
3.06
3.31
Hook & Eye meets Federal Specifications
5/8 x 12
21 1/2
3.50
3.78
4.00
FF T 791 b Type 1, Form 1, Class 6
3/4 x 6
17
3.89
4.00
4.11
3/4 x 9
20
4.61
4.75
5.10
3/4 x 12
23
5.43
5.36
5.65
Stub ends meets Federal Specifications
3/4 x 18
29
7.25
7.00
7.00
FF T 791 b Type 1, Form 1, Class 3
7/8 x 12
24 5/8
8.10
8.00
8.17
7/8 x 18
30 5/8
9.25
9.75
9.00
1 x 6
20 5/8
9.33
9.00
9.75
Stainless Steel turnbuckles available See page .
1 x 12
26 5/8
11.93
11.20
12.00
Stub end turnbuckles available.
1 x 18
32 5/8
14.00
13.30
14.00
1 x 24
38 5/8
17.25
17.00
17.00
NOTE: Never exceed Working Load Limits Read
important warnings and cautions on pages .
1 1/4 x 12
29 7/8
18.00
20.00
21.50
1 1/4 x 18
35 7/8
23.00
24.18
25.50
1 1/4 x 24
41 7/8
27.00
27.50
28.70
1 1/2 x 12
32 3/8
27.50
28.50
30.05
1 1/2 x 18
38 3/8
31.00
35.00
34.25
1 1/2 x 24
44 3/8
37.50
38.73
40.67
1 3/4 x 18
41 3/4
52.50
53.75
55.04
Note: Use weights if eye & eye turnbuckles for
1 3/4 x 24
47 3/4
58.00
61.00
63.36
approximate weights of stub end turnbuckles.
2 x 24
51 3/4
85.25
89.00
94.00
2 1/2 x 24
58 1/2
144.25
150.00
165.00
2 3/4 x 24
61 1/2
194.00
183.00
198.00
89
